《注文方法》
① 使う圧力, Tube Sizeに当たる Male 選択(表意縦参照).
② 連結する圧力, Tube Sizeを確認後 LOK(Female) 選択(表意横参照).
③ 当たる Catalog Noと寸法を確認.
(単位 : mm)
Pressure Rating
LOK(Female)
60,000 psi
(Male)

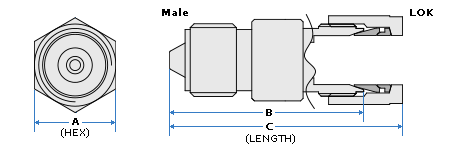

Catalog No. / Dimensions
A
B
C
A
B
C
A
B
C
A
B
C
Tube Size
(Port Type)
1/8"
1/4"
3/8"
1/2"
1/4"
(H6004)
A060M4/LOKF02
A060M4/LOKF04
A060M4/LOKF06
A060M4/LOKF08
16
35.6
42.6
16
37.3
44.67
16
38.8
46.17
20.6
38.8
48.56
3/8"
(H6006)
A060M6/LOKF02
A060M6/LOKF04
A060M6/LOKF06
A060M6/LOKF08
20.6
43.1
50.1
20.6
44.8
52.17
20.6
46.3
53.67
20.6
46.3
56.06
9/16"
(H6009)
A060M9/LOKF02
A060M9/LOKF04
A060M9/LOKF06
A060M9/LOKF08
30
52.6
59.6
30
54.3
61.67
30
55.8
63.17
30
55.8
66.06
Male - LOK(Female)

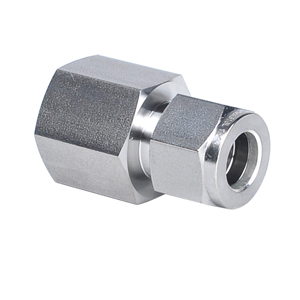

Female - LOK(Female)
《注文方法》
① 使う圧力, Tube Sizeに当たる Female 選択(表意縦参照).
② 連結する圧力, Tube Sizeを確認後 LOK(Female) 選択(表意横参照).
③ 当たる Catalog Noと寸法を確認.
(単位 : mm)
Pressure Rating
LOK(Female)
60,000 psi
(Female)

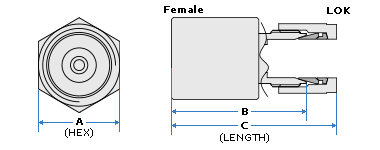

Catalog No. / Dimensions
A
B
C
A
B
C
A
B
C
A
B
C
Tube Size
(Port Type)
1/8"
1/4"
3/8"
1/2"
1/4"
(H6004)
A060F4/LOKF02
A060F4/LOKF04
A060F4/LOKF06
A060F4/LOKF08
20.6
29.1
36.1
20.6
33
40.37
20.6
34.5
41.87
20.6
35.4
45.66
3/8"
(H6006)
A060F6/LOKF02
A060F6/LOKF04
A060F6/LOKF06
A060F6/LOKF08
25.4
37.9
44.9
25.4
39.3
46.67
25.4
40.8
48.17
25.4
41.7
51.96
9/16"
(H6009)
A060F9/LOKF02
A060F9/LOKF04
A060F9/LOKF06
A060F9/LOKF08
36
42.2
49.2
36
43.6
50.97
36
45.1
52.47
36
46
56.26
Male - LOK(Female)
Female - LOK(Female)
