(単位 : mm)
Catalog
No.
Pressure
Rating
Port
Type
Tube
Size
Orifice
Size
Dimensions
Block
Thickness
A
B
C
D
(HEX)
C1
D1
(HEX)
E
F
FT20ES04-06
20,000
psi
H2006
1/4"-3/8"
5.2
35
35
13.8
12
14.2
16
25
25
20
FT20ES04-09
H2009
1/4"-9/16"
7.9
45
45
13.8
12
19.3
22
31.5
31.5
25
FT20ES06-09
H2009
3/8"-9/16"
7.9
45
45
14.2
16
19.3
22
31.5
31.5
25
Elbow
Tee
(単位 : mm)
Catalog
No.
Pressure
Rating
Port
Type
Tube
Size
Orifice
Size
Dimensions
Block
Thickness
A
B
C
D
(HEX)
C1
D1
(HEX)
E
F
FT20TS06-04-06
20,000
psi
H2006
3/8"-1/4"-3/8"
5.2
35
50
13.8
12
14.2
16
25
25
20
FT20TS09-06-09
H2009
9/16"-3/8"-9/16"
7.9
45
63
14.2
16
19.3
22
31.5
31.5
25

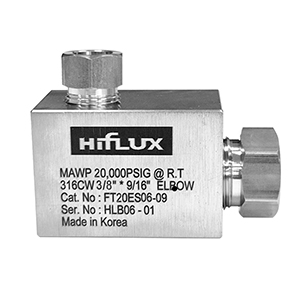

Elbow

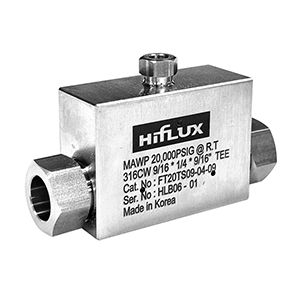

Tee
