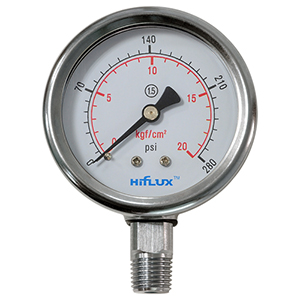

外径 大きさ 62mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~20㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
D1 D2 X1 X2 H
HI60A4c-20 0~20 62 67 11 31 55
  • HI60A4c-20
  • HI60A4c-50
  • HI60A4c-150
  • HI60A4c-250
  • HI100A3d-500
  • HI100A3d-1000

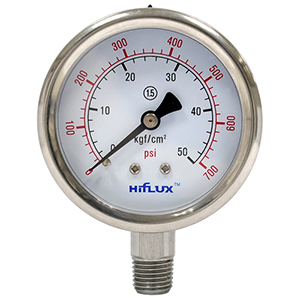

外径 大きさ 62mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~50㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI60A4c-50 0~50 68 45 19 29 62
  • HI60A4c-20
  • HI60A4c-50
  • HI60A4c-150
  • HI60A4c-250
  • HI100A3d-500
  • HI100A3d-1000
外径 大きさ 62mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~150㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI60A4c-150 0~150 68 45 19 29 62
  • HI60A4c-20
  • HI60A4c-50
  • HI60A4c-150
  • HI60A4c-250
  • HI100A3d-500
  • HI100A3d-1000

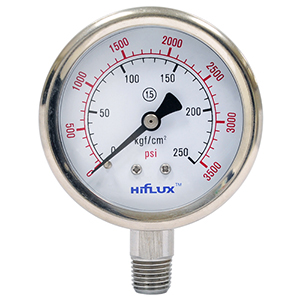

外径 大きさ 62mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~250㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI60A4c-250 0~250 68 45 19 29 62
  • HI60A4c-20
  • HI60A4c-50
  • HI60A4c-150
  • HI60A4c-250
  • HI100A3d-500
  • HI100A3d-1000

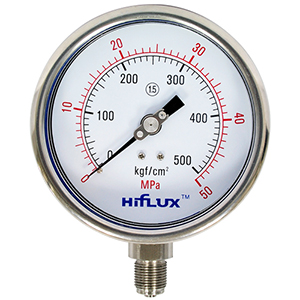

外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~500㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI100A3d-500 0~500 110 66.5 34 49 100
  • HI60A4c-20
  • HI60A4c-50
  • HI60A4c-150
  • HI60A4c-250
  • HI100A3d-500
  • HI100A3d-1000
外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Organic glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~1000㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type A (Bottom connection direct)
Temperature of use with glycerin : -5 ~ 55℃
with silicone oil : -25~55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI100A3d-1000 0~1000 110 66.5 34 49 100
