外径 大きさ 60mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Flat glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~35㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type J (Bottom connection, Flush)
Temperature of use with glycerin : -5 ~ 55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog No. Pressure Range (㎏f/㎠)

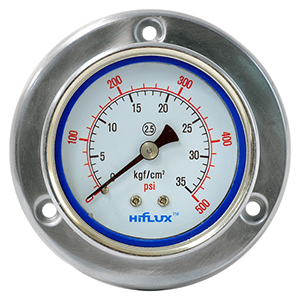

HI60J4c-35 0~35
A(Φ) B(Φ) C D E(Φ) PCD(Φ) F
89.5 67.5 37.5 58 4.4 75 60
  • HI60J4c-35
  • HI100J3d-100
  • HI100J3d-250
  • HI100J3d-500
  • HI100J3d-1000
外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Flat glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~100㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type J (Bottom connection, Flush)
Temperature of use with glycerin : -5 ~ 55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog No. Pressure Range (㎏f/㎠)

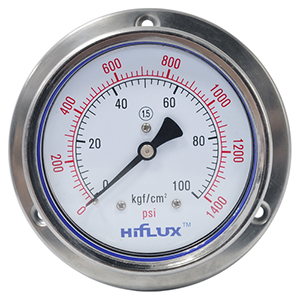

HI100J3d-100 0~100
A(Φ) B(Φ) C D E(Φ) PCD(Φ) F
132.5 110 50 77.5 5.2 122 100
  • HI60J4c-35
  • HI100J3d-100
  • HI100J3d-250
  • HI100J3d-500
  • HI100J3d-1000
外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Flat glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~250㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type J (Bottom connection, Flush)
Temperature of use with glycerin : -5 ~ 55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog No. Pressure Range (㎏f/㎠)
HI100J3d-250 0~250
A(Φ) B(Φ) C D E(Φ) PCD(Φ) F
132.5 110 50 77.5 5.2 122 100
  • HI60J4c-35
  • HI100J3d-100
  • HI100J3d-250
  • HI100J3d-500
  • HI100J3d-1000
外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Flat glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~500㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type J (Bottom connection, Flush)
Temperature of use with glycerin : -5 ~ 55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog No. Pressure Range (㎏f/㎠)
HI100J3d-500 0~500
A(Φ) B(Φ) C D E(Φ) PCD(Φ) F
132.5 110 50 77.5 5.2 122 100
  • HI60J4c-35
  • HI100J3d-100
  • HI100J3d-250
  • HI100J3d-500
  • HI100J3d-1000
外径 大きさ 100mm
精度 ±1.5%
材質 Case 304SS
Cover whole-steel
Movement 304SS
Pointer Black Aluminum
Element & Socket Flat glass
Window Black electrophoresis manganese steel belt
Pressure Range Pressure 0~1000㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ PF 3/8"
Type J (Bottom connection, Flush)
Temperature of use with glycerin : -5 ~ 55℃
No oil filled : -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog No. Pressure Range (㎏f/㎠)

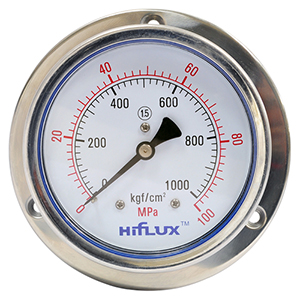

HI100J3d-1000 0~1000
A(Φ) B(Φ) C D E(Φ) PCD(Φ) F
132.5 110 50 77.5 5.2 122 100
