外径 大きさ 50mm
精度 ±2.5%
材質 Case Brass
Cover 304SS
Movement Polycarbonate
Pointer 08 F Cold-rilled sheet spray powders
Element & Socket Aluminum alloy
Window Plastic surface screw-plug bottom bolt installation
Pressure Range Pressure 0~20㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E

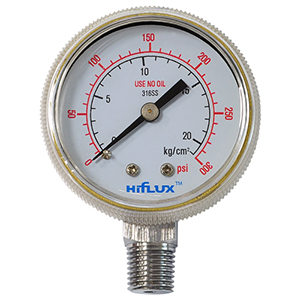

HI50POT-20 0~20 57.5 34 19.5 29 50
  • HI50POT-20
  • HI50POT-70
  • HI50POT-150
  • HI50POT-250
外径 大きさ 50mm
精度 ±2.5%
材質 Case Brass
Cover 304SS
Movement Polycarbonate
Pointer 08 F Cold-rilled sheet spray powders
Element & Socket Aluminum alloy
Window Plastic surface screw-plug bottom bolt installation
Pressure Range Pressure 0~70㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E

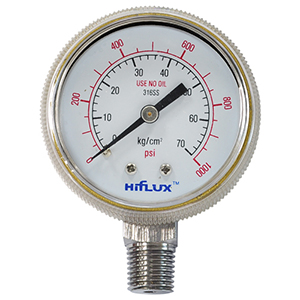

HI50POT-70 0~70 57.5 34 19.5 29 50
  • HI50POT-20
  • HI50POT-70
  • HI50POT-150
  • HI50POT-250
外径 大きさ 50mm
精度 ±2.5%
材質 Case Brass
Cover 304SS
Movement Polycarbonate
Pointer 08 F Cold-rilled sheet spray powders
Element & Socket Aluminum alloy
Window Plastic surface screw-plug bottom bolt installation
Pressure Range Pressure 0~150㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E
HI50POT-150 0~150 57.5 34 19.5 29 50
  • HI50POT-20
  • HI50POT-70
  • HI50POT-150
  • HI50POT-250
外径 大きさ 50mm
精度 ±2.5%
材質 Case Brass
Cover 304SS
Movement Polycarbonate
Pointer 08 F Cold-rilled sheet spray powders
Element & Socket Aluminum alloy
Window Plastic surface screw-plug bottom bolt installation
Pressure Range Pressure 0~250㎏f/㎠
Ductility -0.1~0.06MPa ~ -0.1~2.4Mpa
Vaccum -0.1MPa~0
取付ねじ NPT 1/4"
Type A (Bottom connection direct)
Temperature of use -40~200℃


  • HIFLUX 게이지
(単位 : mm)
Catalog
No.		 Pressure
Range
(㎏f/㎠)		 Dimensions
A(Φ) B C D E

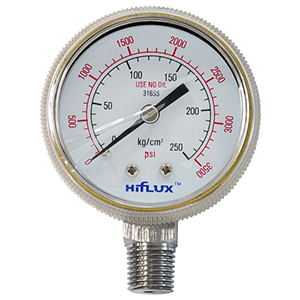

HI50POT-250 0~250 57.5 34 19.5 29 50
